Posts Tagged ‘collection’

Gift icons

Download Link: http://www.vectorfresh.com/gift-icons/
By: Vectorfresh.com

10 Completely Free Wireframing and Mockup Tools

The wireframing process is the straight-to-the-point and completely non-tech stage of any web project. It only requires that you define a skeletal outline of essential page elements such as headers, footers, navigation and content area and should illustrate how to cater and respond to any possible interaction from a user.
It is the most important, yet underused, stage of any web or apps development.

There are several avenues you could take for sketching a wireframe, most notably pen and paper (the easiest and most cost effective way), but for the sake of this article we have focused on apps that are not only highly effective and easy to use, they are also completely free.

We have covered free wireframe apps before (here), but a year is a long time in web development – some of the apps we had previously covered are either no longer completely free or are no longer available. And as such, we felt that we should compile a new list with more detail and covering all areas of design including web pages, mobile apps and application dev.
As well as showcasing a variety of free apps (11 in total), at the bottom of the post, we have also highlighted some premium wireframing services that do offer free, yet limited, options. You may like to try them.

Please note that all of these apps have been confirmed as completely free on this articles publishing date.

Lumzy - Quick Mockup Creation and Prototyping Tool
With Lumzy, you can create mockups of how your site or application will function by adding events from the extensive list of controls on offer. As well as having great tools for creating your mockup, you can also create Message Alerts, interactive Page Navigation, add Links to external content, and much more. It does offer a great set collaboration tools for live team editing and a chat engine for deliberating over designs. All of this and it is absolutely FREE.
Lumzy Homepage →View Editor →

Lumzy Editor Screenshot

Lumzy Demo

Mockup Builder
Mockup Builder has just recenly been released and looks very promising. It is feature-rich and versatile by allowing you create various prototyping styles, including: UI mockups, interactive wireframes, website layouts, desktop software prototypes and even sitemaps & screen navigation.
Of course, it does come with great collaboration tools for sharing with clients and colleagues. And yes, it is completely FREE.
Mockup Builder Homepage →View Editor →

Mockup Builder Editor Screenshot

Mockup Builder Demo

Tiggr - Creating Prototypes Collaboratively
The idea behind Tiggr (currently in beta) is to give you the resources needed to create prototypes (for web, app or mobile) that look and feel like the final product. It allows you to design from a large number of components, share (via email, Twitter or Facebook), you can collaborate with any number of users and will generate an HTML/JS/CSS so that you can preview your UI mockups very quickly. A 10 second registration (email & password) is the only thing you have to go through to use this fantastic FREE tool.
Tiggr Homepage →

Tiggr Editor Screenshot

Tiggr - Creating Prototypes Collaboratively

Frame Box - Lightweight Online Tool for Creating Mockups
Frame Box does not have an extensive list of features (like the web based apps above). You can drag and drop, re-size and copy/paste the UI units, but its main focus, and why we like it so much, is that it allows you to create your mockup/prototype very, very quickly by using its very easy to use drag and drop interface. Again, this app is FREE and only requires a quick registration.
Frame Box Homepage →

SimpleDiagrams Adobe Air App
SimpleDiagrams (free version) is a tiny Adobe Air app that helps you express your design ideas quickly and simply. Drag & drop symbols from its libraries, add images or post-notes, export as a PNG are all of its features, adding up to just just enough functionality to create a decent mockup.
SimpleDiagrams Homepage →

iPhone Mockup
With iPhone Mockup you have a choice of using either the Pencil styled editor (screenshot above) or the Illustration editor (screenshot below). Whichever editor you decide to use, the functionality remains the same: Its a very simple and easy to use app that allows you to create your own iPhone mockups very quickly, share them with other people at the click of a button, and any changes you make will by synced to everyone who has the mockup’s URL.
iPhone Mockup Homepage →Illustration Editor →Pencil Editor →

iPhone Mockup Editor Screenshot

iPhone Mockup

fluidIA
fluidIA is a downloadable web based design tool for prototyping rich user interfaces. It allows for rapid refinement and exploration of concepts using an object-oriented approach to design. The original idea behind fluidIA is to discover whether a group of interaction designers, IA’s, UX professionals and developers can create there own prototyping tool in an open way. Progress on FluidIA has been a little bit slow recently, but the actual app works perfectly for designing a wireframe mockup.
fluidIA Homepage →Fluidia (GitHub) →

fluidIA Editor Screenshot

fluidIA

Pencil Project
Pencil Project is a free and opensource Firefox addon for designing GUI prototypes. With its built-in stencils you can create linked multi-page UI documents and finally export your mockup in either HTML, PNG, Openoffice.org document, Word document or PDF. What more would you want from a wireframing app? This truly is an essential Firefox extension that any serious developer or designer should use.
Pencil Project Homepage →Screenshots →

Pencil Project Editor Screenshot

Pencil Project Screenshots

CogTool - General Purpose UI Prototyping Tool
CogTool is a FREE and powerful general purpose UI prototyping tool with a difference – it automatically evaluates your design with a predictive human performance model (a “cognitive crash dummy”). You simply create a storyboard of your design idea with sketches, images or on a canvas with CogTool’s widgets, demonstrate tasks on that storyboard, then press a button to produce a valid cognitive model predicting how long it will take a skilled user to complete those tasks. CogTool offers a lot of support via its extensive user guides, step-by-step tutorials (video and articles), its forum and also offers example files to help you get started.
CogTool Homepage →

Software Prototyping - Serena Software
Prototype Composer makes it possible to simulate how an application will look and function before any code is ever written. Instead of endless text entries, complex data hierarchies, or too technical UML diagrams, Serena Prototype Composer makes it easy for business users and business analysts to collaborate on requirements by building simple, high fidelity prototypes that simulate a working application. It is a tool for prototyping data, processes, activities and most importantly, user interfaces. The application also works as a fairly easy to use Project Management tool.
The Community Edition is its free version which allows users to work in a sample project as well as in one user-defined project.
Prototype Composer Homepage →

DUB - DENIM
DENIM is a free desktop application that is available for Windows, Unix, and Mac OS X. DENIM describes itself as “an Informal Tool For Early Stage Web Site and UI Design”.
It combines many of the benefits of paper-based sketching with existing electronic prototyping tools. It allows designers to quickly sketch an interface, preserving the important properties of pencil and paper: a rough drawing can be produced quickly and the medium is flexible. However, unlike a paper sketch, this electronic sketch is interactive and can easily be annotated and modified.
DUB – DENIM Homepage →

All of the Wireframe/Prototype/Mockup web-based applications below are premium services that do offer a free, yet limited, option. You may like to try them:

MockFlow: Online Wireframe Tool

MockFlow: Online Wireframe Tool
MockFlow Homepage →

Gliffy – Online Diagram Software and Flowchart Software

Gliffy - Online Diagram Software and Flowchart Software
Gliffy Homepage →

Naview – Create Easier Navigations Through Prototyping and Testing

Naview - Create Easier Navigations Through Prototyping and Testing
Naview Homepage →

iPlotz – Wireframing, Mockups and Prototyping

iPlotz - Wireframing, Mockups and Prototyping
iPlotz Homepage →

Creately – Collaborative Online Diagram Software

Creately - Collaborative Online Diagram Software
Creately Homepage →

FlairBuilder – Wireframes. Mockups. Prototypes

FlairBuilder - Wireframes. Mockups. Prototypes
FlairBuilder Homepage →

Cacoo – Create Diagrams Online

Cacoo - Create Diagrams Online
Cacoo Homepage →

Mockabilly – iPhone app mockup

Mockabilly - iPhone app mockup
Mockabilly Homepage →

You may also like…

An Introduction to HTML Prototyping →
A Collection of Useful Web Design Wireframing Resources →
A Collection of Printable Web Browser Sketching and Wireframe Templates →
15 Javascript Web UI Libraries, Frameworks and Toolkits →
25 UI Inspiration and Design Pattern Resources →
50 Essential Web Typography Tutorials, Tips, Guides and Best Practices →
25 Free Pictogram and Symbols Sign Icon Sets →
Illustrator Template Toolbox for Web, Mobile and App Developers →
20 Free Web UI Element Kits and Stencils →


Getting Started with CRUD In PHP

It has become a common necessity for website owners to collect data and manage it properly. Creating a MySQL CRUD class allows you to conveniently create, read, update and delete entries for any of your projects, indifferent of how the database is devised. CRUD allows us to generate pages to list and edit database records.
So, in this tutorial I will show you how to build a simple CRUD web app, that will empower you with the basic functions of database management.

You can download the source files for this tutorial here: CRUD In PHP Source

In this article I will discuss following things:-
Creating the database
Creating the table
Make connection to the database
Insert records in table
Update records table
Delete records from table

The tools I will be using are:-
XAMPP
Dreamweaver CS5 (you can use Notepad++ or any other IDE)

Before continuing with the tutorial I would like to discuss the following definitions:
What is CRUD?
What is a database?
What is a table?
What is XAMPP?
Why we use Dreamweaver or any other IDE for website development?

What is CRUD?

CRUD stands for create, read, update, delete. So before working on any language, we are going to get our hands wet by going to CRUD operation.

What is database?

“A comprehensive collection of related data organized for convenient access, generally in a computer.”
This means database is something we use to store our data.

What is table?

A table is a container that holds information about like items. For example, an “Employee” table would contain the same basic details on each employee: name, title, department and so on.

What is XAMPP?

XAMPP is a free to use software that comes with three major services:-
1. Apache ()
2. Mysql ()
3. PhpMyAdmin ()

Why do we use Dreamweaver or any other IDE for website development?

Dreamweaver is a very popular IDE (Integrated Development Environment). IDEs are used for fast website development as it is more reliable and makes it easy to remove and identify errors at no time.

So let start our topic as we have gone through all the necessary knowledge we have to be known.

Step-1: Creating the database:

First run the XAMPP and start the Apache and MySQL services. If it does not initially start then try to see if you have Skype or any other application that may be using XAMPP’s ports. Close these applications to avoid any conflicts. Open phpMyAdmin and start Apache and MySQL.

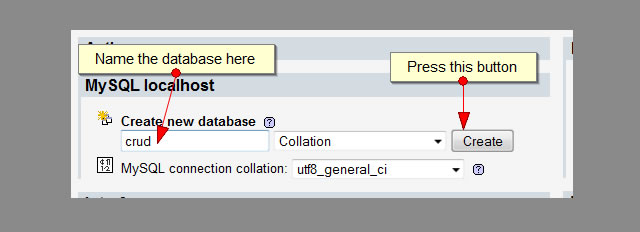

Go to http://localhost/phpmyadmin in your browser and create a database and name it crud, you can name the database as require.

Step-2: Creating the table:

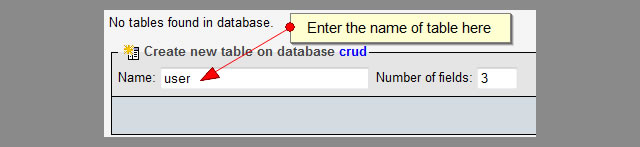

To create the table you have to click on the database name on the page http://localhost/phpmyadmin and give the name of the table as user and number of fields to 3.

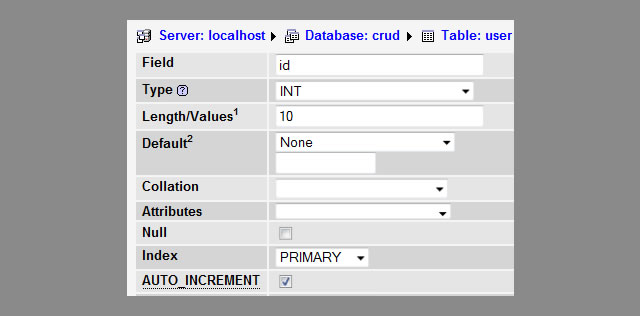

Now a new page will be created. Fill the page as below:

Similary, fill the other two fields as:-

Field: username
Type: varchar
Length/Values: 25

Field: password
Type: varchar
Length/Values: 25

Don’t change any of the other field settings and click on the save button.

Step-3: Make connection to the database:

To make a connection to localhost, we use mysql_connect(). To select the database, we use mysql_select _db().

We use the following code to connect to the database:-

$connect=mysql_connect("localhost","root","");
mysql_select_db("crud",$connect);

In above two lines, localhost is the hostname, root is the username, password=”” and crud is the database name.

Step-4: Insert records in table:

To insert records in table we use the following mysql query:

$query="insert into user(username, password) values('$username', '$password')";
mysql_query($query);

In the above statements ‘user’ is table name, ‘username’ is the column name of the database table, ‘user’ and ‘password’ are also the column names of the table ‘user’. To run this query we use mysql_query($query).

Step-4: Update records in the table:

To update record in table we use the following mysql query:

$query="update user set username='$username' , password='$password' where id=".$_POST['id'];
mysql_query($query);

In above statement $_POST is used to get the values submitted from the html form whose method is post.

Step-5: Delete records From table:

To delete record from the table we use the following mysql query:

$query="delete from user where id=".$_GET['id'];

In the above statement $_GET is used to get the values submitted from the html form whose method is get.

Code of Index.php file

Download Source Files

<?php
$connect=mysql_connect("localhost","root","");
mysql_select_db("crud",$connect);
$username;
$password;
if(isset($_POST["insert"])){
	if($_POST["insert"]=="yes"){
	$username=$_POST["username"];
	$password=$_POST["password"];

$query="insert into user(username, password) values('$username', '$password')";
if(mysql_query($query))
echo "<center>Record Inserted!</center><br>";
	}
}

if(isset($_POST["update"])){
	if($_POST["update"]=="yes"){
	$username=$_POST["username"];
	$password=$_POST["password"];

$query="update user set username='$username' , password='$password' where id=".$_POST['id'];
if(mysql_query($query))
echo "<center>Record Updated</center><br>";
	}
}

if(isset($_GET['operation'])){
if($_GET['operation']=="delete"){
$query="delete from user where id=".$_GET['id'];
if(mysql_query($query))
echo "<center>Record Deleted!</center><br>";
}
}
?>
<html>
<body>
<form name=”insert” method="post" action="index.php">
<table align="center" border="0">
<tr>
<td>username:</td>
<td><input type="text" name="username" /></td>
</tr>
<tr>
<td>password:</td>
<td><input type="password" name="password" /></td>
</tr>
<tr>
<td> </td>
<td align="right">
<input type="hidden" name="insert" value="yes" />
<input type="submit" value="Insert Record"/>
</td>
</tr>
</table>
</form>
<?php

if(isset($_GET['operation'])){
if($_GET['operation']=="edit"){
?>
<form name=”update” method="post" action="index.php">
<table align="center" border="0">
<tr>
<td>username:</td>
<td><input type="text" name="username" value="<?php echo $_GET['username']; ?>" /></td>
</tr>
<tr>
<td>password:</td>
<td><input type="text" name="password" value="<?php echo $_GET['password']; ?>"/></td>
</tr>
<tr>
<td> </td>
<td align="right">
<input type="hidden" name="id" value="<?php echo $_GET['id'] ?>" />
<input type="hidden" name="update" value="yes" />
<input type="submit" value="update Record"/>
</td>
</tr>
</table>
</form>
<?php
}}
?>

<?php
$query="select * from user";
$result=mysql_query($query);
if(mysql_num_rows($result)>0){
	echo "<table align='center' border='1'>";
	echo "<tr>";
	echo "<th>Id</th>";
	echo "<th>Username</th>";
	echo "<th>Password</th>";
	echo "</tr>";
	while($row=mysql_fetch_array($result)){
	echo "<tr>";
	echo "<td>".$row['id']."</td>";
	echo "<td>".$row['username']."</td>";
	echo "<td>".$row['password']."</td>";
	echo "<td><a href='index.php?operation=edit&id=".$row['id']."&username=".$row['username']."&password=".$row['password']."'>edit</a></td>";
	echo "<td><a href='index.php?operation=delete&id=".$row['id']."'>delete</a></td>";
	echo "</tr>";
	}
	echo "</table>";
}
else{
echo "<center>No Records Found!</center>";
}

?>
</body>
</html>

Explanation of the code:

$connect=mysql_connect("localhost","root","");
mysql_select_db("crud",$connect);

The above two statements help to connect to the database(“crud”).

if(isset($_POST["insert"])){
	if($_POST["insert"]=="yes"){
	$username=$_POST["username"];
	$password=$_POST["password"];

isset($_POST["insert"]) checks whether it is set or not, meaning whether the insert button is pressed or not.

if($_POST["insert"]=="yes"){

This statement checks whether the inserted form is submitted or not.
$_POST["username"] gets the value submitted from the form. Post stands for form method which is post.

$query="insert into user(username, password) values('$username', '$password')";
if(mysql_query($query))

$query stores the insert query. This query is inserting the username and password that we get from the insert form when the insert button is pressed to the table ‘user’.

if(mysql_query($query))

if statements returns true if the query is successfully run.

if(isset($_POST["update"])){
	if($_POST["update"]=="yes"){
	$username=$_POST["username"];
	$password=$_POST["password"];

$query=”update user set username=’$username’ , password=’$password’ where id=”.$_POST['id'];
if(mysql_query($query))
echo “

Record Updated

“;[/sql]

These statements updates record in the table ‘user’ getting the id which is submitted with the form named ‘updat’’. Code logic is the same as described before for insert.

if(isset($_GET['operation'])){
if($_GET['operation']=="delete"){
$query="delete from user where id=".$_GET['id'];
if(mysql_query($query))
echo "<center>Record Deleted!</center><br>";
}

The above code runs when the delete link is pressed. It first checks whether the operation keyword is set or not. If it is set then check whether it is delete operation and then runs the delete query. If the query runs successfully then it shows ‘Record Deleted!’ with center align to the page.

<form name=”insert” method="post" action="index.php">

This defines the form with the method post. The difference between post and get method of form is that with get method the form submitted values are showed in the url and there is limit to insert values with the form. Post is used if we want to submit some private data and want to hide the information from the user. The data is not attached with url. Action defines where to submit the values. We have to submit the values in the same page so we type the name of the same file i.e index.php.

<input type="hidden" name="insert" value="yes" />

Hidden type means this field is hidden from the user but it contains the data and is also submitted when the form is submitted while pressing the button. I am using this hidden field to check whether the form is submitted or not.

if(isset($_GET['operation'])){
if($_GET['operation']=="edit"){

The above two lines of code checks whether the operation is set and operation is edit or not.

value="<?php echo $_GET['username']; ?>"

Assign the username value “get” from the url. Nowthis value loads with the form.

$query="select * from user";
$result=mysql_query($query);

The above two line code runs the select query to get data from the table ‘user’.

if(mysql_num_rows($result)>0){

Count the number of records fetched from the table user and checks whether records are greater than zero.

while($row=mysql_fetch_array($result)){
	echo "<tr>";
	echo "<td>".$row['id']."</td>";
	echo "<td>".$row['username']."</td>";
	echo "<td>".$row['password']."</td>";

These statements fetches the table rows from the $result and then stores in $row array and then we display all of the elements from this array i.e. $row[‘id’] and two more.

href='index.php?operation=edit&id=".$row['id']."&username=".$row['username']."&password=".$row['password']."'>edit</a></td>";
	echo "<td><a href='index.php?operation=delete&id=".$row['id']."'>delete</a></td>";
	echo "</tr>";

These statements are used to add some data to the url i.e id, username and password.

How this application works

First the page loads and then there is an option to insert record. If any record exists in the table then it shows up with the edit and deleted links.
When we click on edit link, a new form opens and we can edit the record and then click on update record button and the record is updated in the database. The page loads again and this time it shows the new updated records with the same edit and delete links.
When we click on the delete link the record is deleted and a message will be displayed at the top of the page that the record is successful deleted.
This is how the application works.

These are the terms that may help you more:-

isset()
isset() is used to check whether the variable passed to this function has assigned any value.

Hidden field
The hidden type of html field is that which is submitted with the form but not visible in the page displayed. We use hidden fields to transfer values in the form such as id of the table.

How to run the code

Run the code in Firefox or Chrome by first running XAMPP with apache and MySQL started. Also note that you have to create the database and table with same name I used column names with same name as I have used in this application.

So, you now know the basics of CRUD in PHP. I hope you liked this tutorial and you have learnt CRUD in PHP.


20 New Free Icon Sets for Web Designers and Developers

Once or twice a year we like to take a look at what new icon sets are freely available for designers and developers. We have found a nice selection for you covering most aspects of web, mobile and app devlopment. You will love them!

Stock Icon Set

Stock Icon Set
Number of Icons: 154
Format(s): .ico
Size(s): 16px 32px, 64px & 128px
Stock Icon Set →

iconSweets 2

iconSweets 2
Number of Icons: 400+
Format(s): .psd
Size(s): 16px, 32px & 64px
iconSweets 2 →

Retina Display Icon Set

Retina Display Icon Set
Number of Icons: 400+
Format(s): .png
Size(s): 24px, 48px & 64px
Retina Display Icon Set →Full Preview →

Android Icons – Shape Package

Android Icons – Shape Package
Number of Icons: 40+
Format(s): .png, .psh
Android Icons – Shape Package →

Simple Icon Set

Simple Icon Set
Number of Icons: 16
Format(s): .psd & .png
Simple Icon Set →

NounProject

NounProject
Number of Icons: 500+
Format(s): .svg
NounProject →

Open Source Multitouch Gesture Library

Open Source Multitouch Gesture Library
Number of Icons:
Format(s): .png & .eps
License: Released under a FreeBSD license
Open Source Multitouch Gesture Library →

Agile Toolkit Icon Set

Agile Toolkit Icon SetNumber of Icons: 128
Format(s): .png
Size(s): 16px
Agile Toolkit Icon Set →

Micro Icons

Micro IconsNumber of Icons: 32
Format(s): .ico
Size(s): 16px
Micro Icons →

Strabo Icon Set

Strabo Icon SetNumber of Icons: 16
Format(s): .png
Size(s): 24px
Strabo Icon Set →

Pixim Icon Set

Pixim Icon SetNumber of Icons: 54
Format(s): .gif
Size(s): 12px
Pixim Icon Set →

Pixel Perfect Collection

Pixel Perfect Collection
Number of Icons: 33
Format(s): .png, .ico & .icns
Size(s): 48px
Pixel Perfect Collection →

Basic Rounded

Basic Rounded
Number of Icons: 27
Format(s): .psd
Basic Rounded →

LinkDeck Social Bookmark Icon Pack

LinkDeck Social Bookmark Icon Pack
Number of Icons: 45
Format(s): .psd
Size(s): 16px, 32px, 64px, 128px & 256px
LinkDeck Social Bookmark Icon Pack →

Buddycon – Vector-Based Social Media Icons

Buddycon - Vector-Based Social Media Icons
Number of Icons: 126
Format(s): .ai & .png
Size(s): 32px
Buddycon →

WPZOOM Developer Icon Set

WPZOOM Developer Icon Set
Number of Icons: 154
Format(s): .png, .ai & .psd
Size(s): 48px
WPZOOM Developer Icon Set →

E-Commerce Icons

E-Commerce Icons
Number of Icons:
Format(s): .psd
Size(s): 48px, 64px & 128px
E-Commerce Icons →

Kaching eCommerce Icons

Kaching eCommerce Icons
Number of Icons: 24
Format(s): .png, .ai & .psd
Size(s): 48px & 400px
Kaching eCommerce Icons →

Credit Card, Debit Card and Payment Icons Set

Credit Card, Debit Card and Payment Icons Set
Number of Icons: 18
Format(s): .png
Size(s): 32px, 64px & 128px
Credit Card, Debit Card and Payment Icons Set →

Credit Card Icon Pack

Credit Card Icon Pack
Number of Icons: 35
Format(s): .png
Size(s): 32px
Credit Card Icon Pack →

…and finally … HTML5 Icons

HTML5 Icons
Number of Icons: 10
Format(s): .png & .ai
Size(s): 512px
HTML5 Icons →

Original W3C HTML5 Icons

Original W3C HTML5 Icons
Format(s): .png & .svg
Size(s): 32px, 64px, 128px, 256px & 512px
Original W3C HTML5 Icons →

You might also like…

The Top 50 Web Development Icon Sets from 2009 →
Top 50 Web Development, Design and Application Icon Sets from 2010 →
50 of the Best Ever Web Development, Design and Application Icon Sets →
50 Social Service and Bookmarking Icon Sets for Bloggers Part 1 → & Part 2 →
30 of the Best Web Development and Design MINI Icon Sets →
15 Uniform Payment Options Icon Sets for Ecommerce Design →
14 Free Mobile Application Development Icon Sets →
8 Free Pictogram Icon Libraries and Collections →
40 Fresh and Free Icon Sets for Web Designers and Bloggers →
